Your First App using Ant Design

Introduction

This tutorial will go through the process of building a simple admin panel for a CMS-like application.

Step by step, you're going to learn how to consume a REST API and add basic CRUD functionality to your panel leveraging the unique capabilities of refine.

Let's begin by setting up a new refine project.

Setting up

There are two alternative methods to set up a refine application.

The recommended way is using the create refine-app tool. create refine-app's CLI wizard will let you create and customize your application in seconds.

Alternatively, you may use the create-react-app tool to create an empty React application and then add refine module via npm.

use create refine-app

First, run the create-react-app tool to bootstrap an empty React project.

npx create-react-app tutorial --template typescript

note

--template typescript flag will ensure that the Typescript language is selected.

Navigate to the project folder and install refine with the following npm command:

use npm

npm i @pankod/refine-core @pankod/refine-antd @pankod/refine-react-router-v6

use yarn

yarn add  @pankod/refine-core @pankod/refine-antd @pankod/refine-react-router-v6

:::warning This tutorial assumes your project is configured for absolute imports. Since CRA does not configure it by default, you should configure it yourself to be able to use absolute imports. You should configure a tsconfig.json with baseUrl setting pointing to the /src directory in your project.

Refer to CRA docs for more information about absolute imports. → :::

use create-react-app

First, run the create refine-app with the following command:

npm create refine-app -- -o refine-antd tutorial

About Fake REST API

refine is designed to consume data from APIs.

For the sake of this tutorial, we will provide you a fully working, fake REST API located at https://api.fake-rest.refine.dev/. You may take a look at available resources and routes of the API before proceeding to the next step.

Using a Dataprovider

Dataproviders are refine components making it possible to consume different API's and data services conveniently. To consume our Fake REST API, we'll use the "Simple REST Dataprovider".

Next, navigate to the project folder and run the following command to install the required package:

use npm

npm i @pankod/refine-simple-rest

use yarn

yarn add @pankod/refine-simple-rest

note

If you used create refine-app to bootstrap the project, you can skip issuing this command as create refine-app already installs the selected data provider.

note

Fake REST API is based on JSON Server Project. Simple REST Dataprovider is fully compatible with the REST rules and methods of the JSON Server.

tip

refine includes many out-of-the-box data providers to use in your projects like

• Simple REST API
• GraphQL
• NestJS CRUD
• Airtable
• Strapi - Strapi v4
• Strapi GraphQL
• Supabase
• Hasura
• Nhost
• Appwrite
• Medusa
• Altogic

Community ❤️

• Firebase by rturan29
• Directus by tspvivek
• Elide by chirdeeptomar

Refer to the dataProvider documentation for detailed usage. →

Bootstrapping the Application

Replace the contents of App.tsx with the following code:

src/App.tsx

import { Refine } from "@pankod/refine-core";
import {
    Layout,
    ReadyPage,
    notificationProvider,
    ErrorComponent,
} from "@pankod/refine-antd";
import routerProvider from "@pankod/refine-react-router-v6";
import dataProvider from "@pankod/refine-simple-rest";

import "@pankod/refine-antd/dist/styles.min.css";

const App: React.FC = () => {
    return (
        <Refine
            routerProvider={routerProvider}
            dataProvider={dataProvider("https://api.fake-rest.refine.dev")}
            Layout={Layout}
            ReadyPage={ReadyPage}
            notificationProvider={notificationProvider}
            catchAll={<ErrorComponent />}
        />
    );
};

export default App;

<Refine/> is the root component of a refine application. Using the dataProvider prop, we made our Simple REST Dataprovider available to the entire application.

Run the following command to launch the app in development mode:

with create refine-app

npm run dev

with create-react-app

npm run start

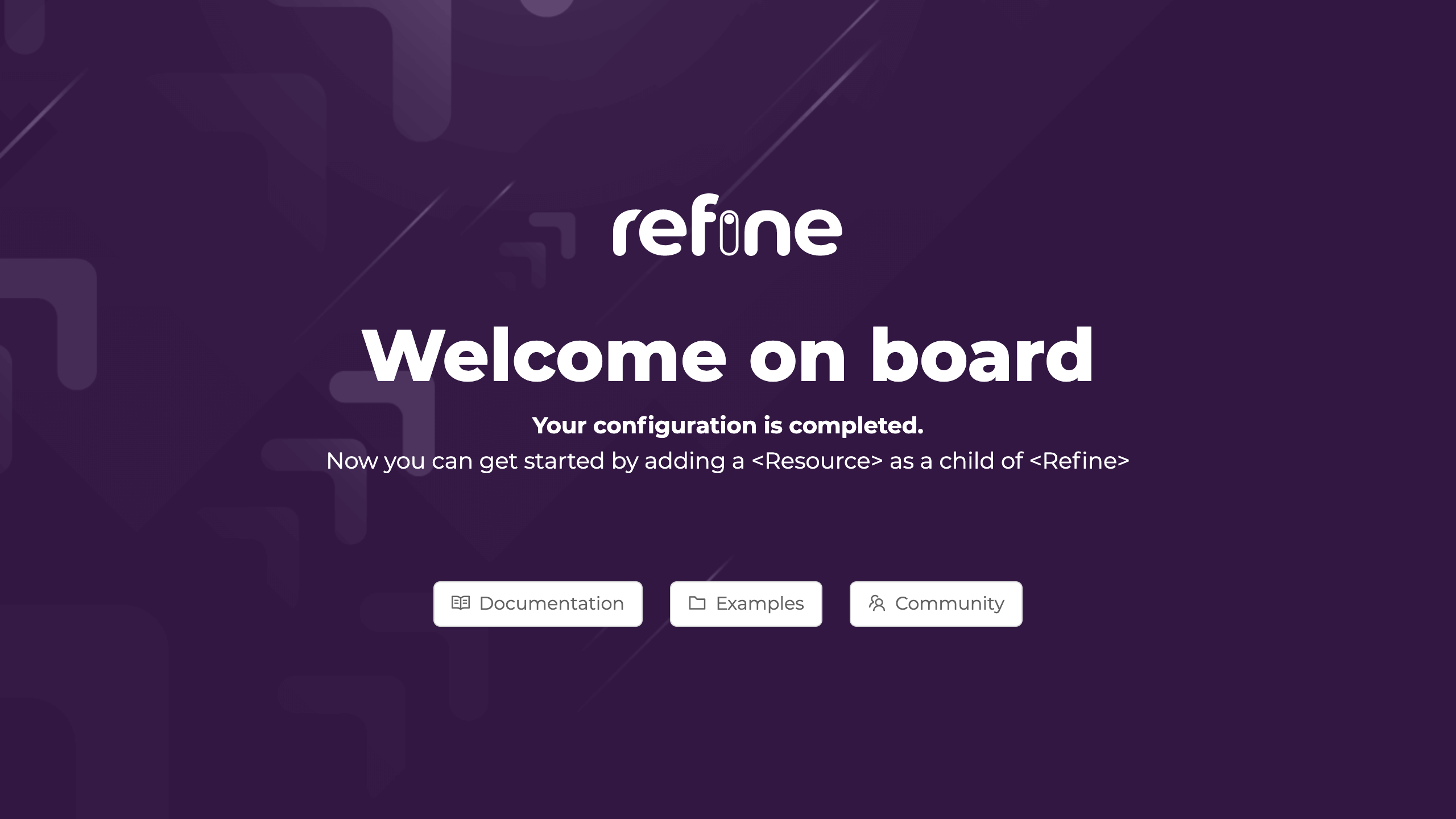

Your refine application should be up and running! Point your browser to http://localhost:3000 to access it. You will see the welcome page.

Adding Resources

Now we are ready to start connecting to our API by adding a resource to our application.

Let's add /posts/ endpoint from our API as a resource. First take a look to the raw API response for the request made to the /posts/ route:

Show response

GET https://api.fake-rest.refine.dev/posts/

[
  {
    "id": 1,
    "title": "Eius ea autem sapiente placeat fuga voluptas quos quae.",
    "slug": "beatae-esse-dolor",
    "content": "Explicabo nihil delectus. Nam aliquid sunt numquam...",
    "category": {
      "id": 24
    },
    "user": {
      "id": 7
    },
    "status": "draft",
    "createdAt": "2021-03-13T03:09:30.186Z",
    "image": [],
    "tags": [
      7,
      4
    ],
    "language": 2
  },
  ...
]

Now, add the highlighted code to your App.tsx to connect to the endpoint.

src/App.tsx

import { Refine } from "@pankod/refine-core";
import {
    Layout,
    ReadyPage,
    notificationProvider,
    ErrorComponent,
} from "@pankod/refine-antd";
import routerProvider from "@pankod/refine-react-router-v6";
import dataProvider from "@pankod/refine-simple-rest";

import "@pankod/refine-antd/dist/styles.min.css";

export const App: React.FC = () => {
    return (
        <Refine
            routerProvider={routerProvider}
            dataProvider={dataProvider("https://api.fake-rest.refine.dev")}
            Layout={Layout}
            ReadyPage={ReadyPage}
            notificationProvider={notificationProvider}
            catchAll={<ErrorComponent />}
            resources={[{ name: "posts" }]}
        />
    );
};

info

resources is a property of <Refine/> representing API Endpoints. The name property of every single resource should match one of the endpoints in your API!

Instead of showing the welcome page, the application should redirect now to an URL defined by the name property. Open your application to check if the URL is routed to /posts:

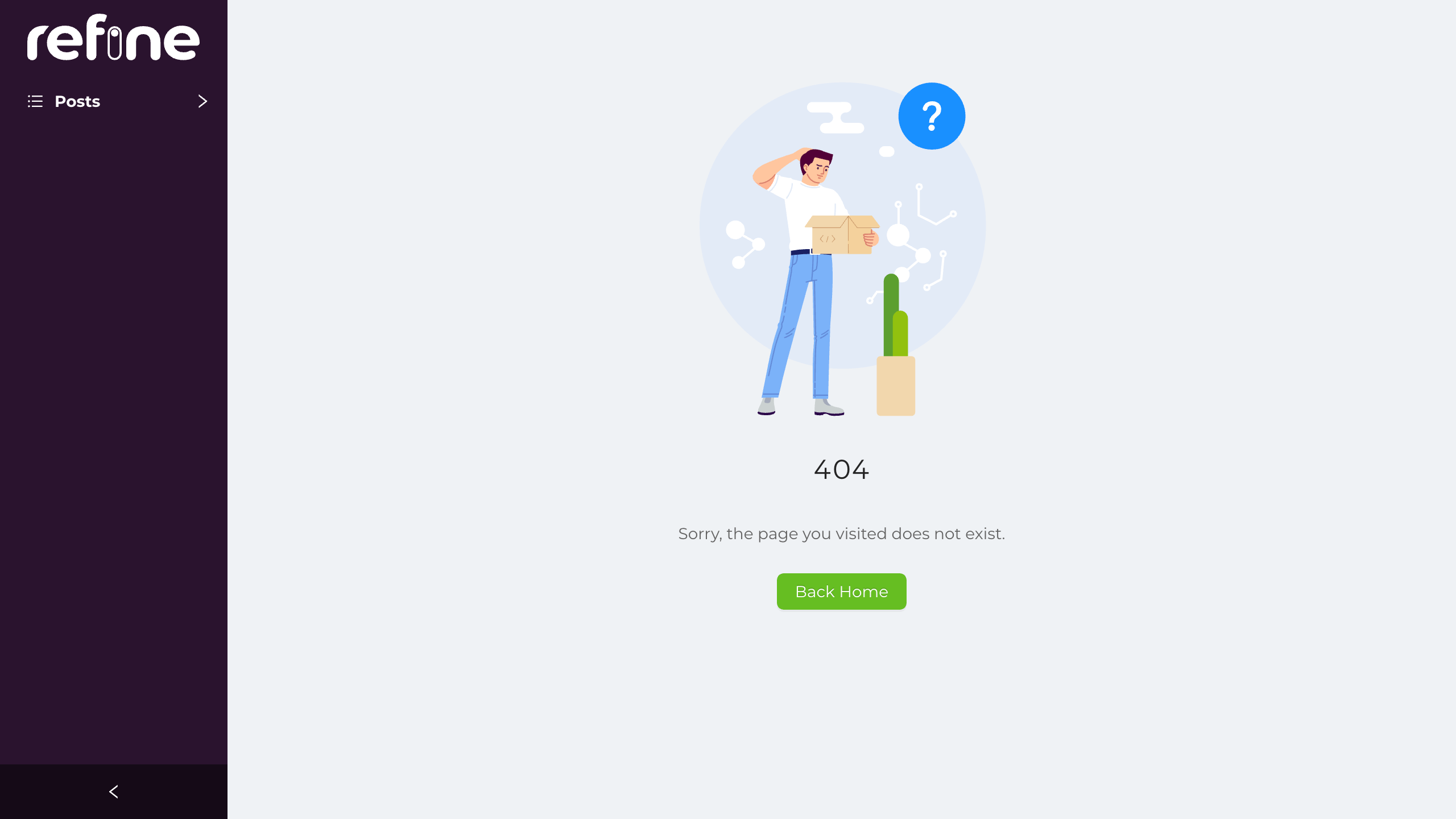

You'll still see a 404 error page because no Page component is assigned to our resource yet.

note

resources use Page components to handle data and perform rendering. Page components are passed to resources as an array of objects. For basic CRUD operations, there are four predefined props: list, create, edit and show.

Let's create a Page component to fetch posts and display them as a table. Later, we will pass the component as the list prop to our resource.

Creating a List Page

First, we'll need an interface to work with the data from the API endpoint.

Create a new folder named "interfaces" under "/src" if you don't already have one. Then create a "index.d.ts" file with the following code:

interfaces/index.d.ts

export interface IPost {
    id: number;
    title: string;
    status: "published" | "draft" | "rejected";
    createdAt: string;
}

We'll be using title, status and createdAt fields of every post record.

Now, create a new folder named "pages/posts" under "/src". Under that folder, create a "list.tsx" file with the following code:

src/pages/posts/list.tsx

import {
    List,
    TextField,
    TagField,
    DateField,
    Table,
    useTable,
} from "@pankod/refine-antd";

import { IPost } from "interfaces";

export const PostList: React.FC = () => {
    const { tableProps } = useTable<IPost>();
    return (
        <List>
            <Table {...tableProps} rowKey="id">
                <Table.Column dataIndex="title" title="title" />
                <Table.Column
                    dataIndex="status"
                    title="status"
                    render={(value) => <TagField value={value} />}
                />
                <Table.Column
                    dataIndex="createdAt"
                    title="createdAt"
                    render={(value) => <DateField format="LLL" value={value} />}
                />
            </Table>
        </List>
    );
};

Let's break down the <PostList/> component to understand what's going on here:

✳️ <Table/> is a native Ant Design component. It renders records row by row as a table. <Table/> expects a rowKey prop as the unique key of the records.

note

refine uses Ant Design components to render data. You may refer to Ant Design Docs for further information about the <Table/> component.

✳️ useTable<IPost>(); is passed to the <Table/> component as {...tableProps}.

This is the point where the ✨real magic✨ happens!

refine hook useTable() fetches data from API and wraps them with various helper hooks required for the <Table/> component. Data interaction functions like sorting, filtering, and pagination will be instantly available on the <Table/> with this single line of code.

note

refine depends heavily on hooks and useTable() is only one among many others. On useTable() Documentation you may find more information about the usage of this hook.

✳️ <Table.Column> components are used for mapping and formatting each field shown on the <Table/>. dataIndex prop maps the field to a matching key from the API response. render prop is used to choose the appropriate Field component for the given data type.

note

The example uses <TagField> and <DateField> components. To get the full list of available components, you may refer to the Field Components Documentation.

✳️ <List> is a refine component. It acts as a wrapper to <Table> to add some extras like Create Button and title.

Finally, we are ready to add <PostList> to our resource. Add the highlighted line to your App.tsx

src/App.tsx

import { Refine } from "@pankod/refine-core";
import {
    Layout,
    ReadyPage,
    notificationProvider,
    ErrorComponent,
} from "@pankod/refine-antd";
import routerProvider from "@pankod/refine-react-router-v6";
import dataProvider from "@pankod/refine-simple-rest";

import "@pankod/refine-antd/dist/styles.min.css";

import { PostList } from "./pages/posts";

export const App: React.FC = () => {
    return (
        <Refine
            routerProvider={routerProvider}
            dataProvider={dataProvider("https://api.fake-rest.refine.dev")}
            Layout={Layout}
            ReadyPage={ReadyPage}
            notificationProvider={notificationProvider}
            catchAll={<ErrorComponent />}
            resources={[{ name: "posts", list: PostList }]}
        />
    );
};

Note you will need a few more files which help src/App.tsx to find your pages and posts. In the /pages folder, put this index.tsx file in it which allows everything in the posts folder to be used elsewhere.

src/pages/index.tsx

export * from "./posts";

Similarly, put a file in the /src/pages/posts folder which accomplishes the same function. We will use the commented out code later as we add more capabilities to our app. Remember as you add functions, uncomment each appropriate line.

src/pages/posts/index.tsx

export * from "./list";
// export * from "./edit";
// export * from "./create";
// export * from "./show";

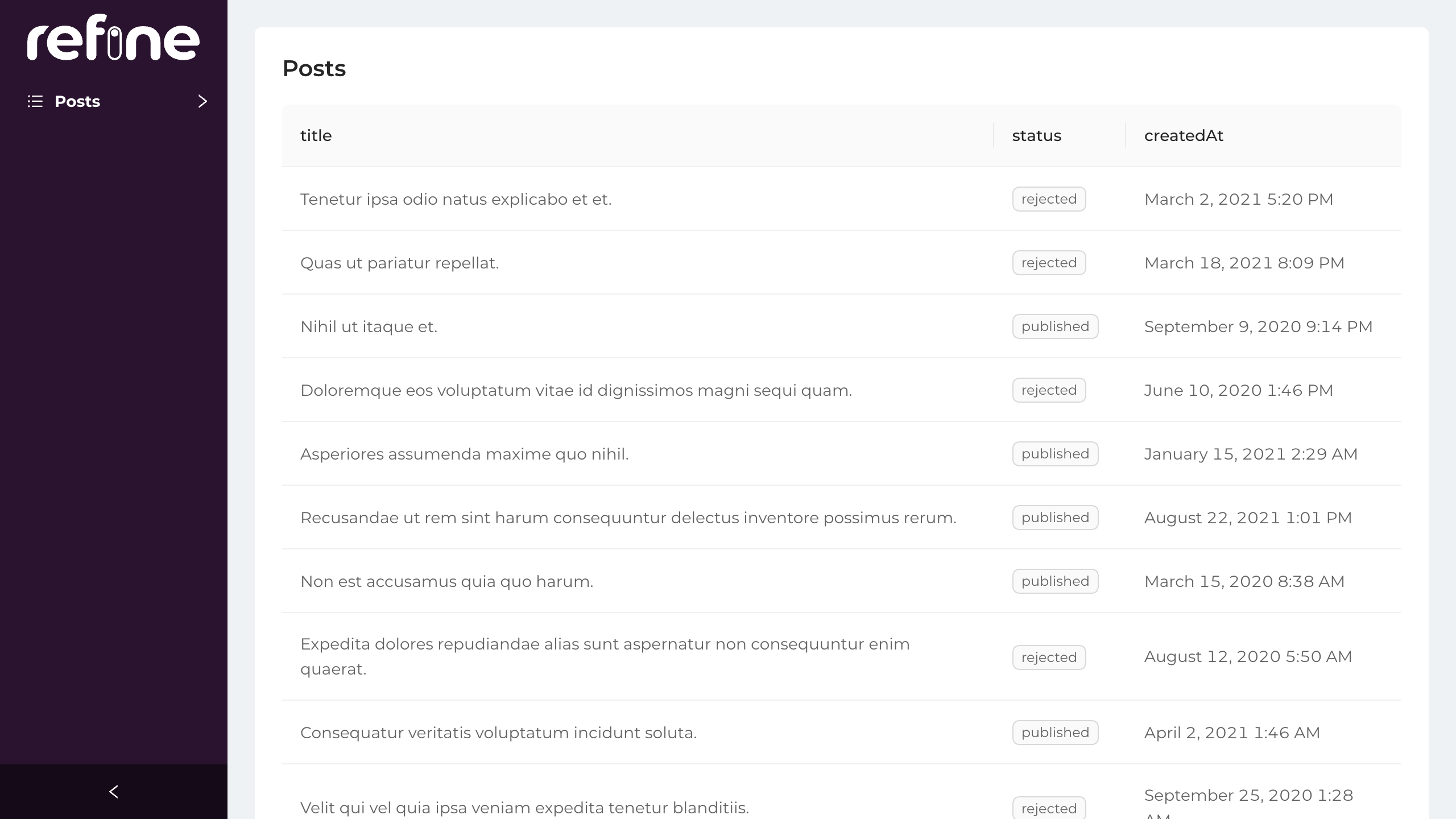

Open your application in your browser. You will see posts are displayed correctly in a table structure and even the pagination works out-of-the box.

In the next step, we are going to add a category field to the table which involves handling data relationships.

Handling relationships

Remember the records from /posts endpoint that had a category id field.

https://api.fake-rest.refine.dev/posts/1

...
  "category": {
    "id": 26
  }
...

To display category titles on our table, we first need to map category id's to their corresponding titles. The category title data can be obtained from the /categories endpoint for each record.

https://api.fake-rest.refine.dev/categories/26

  {
    "id": 26,
    "title": "mock category title",
  }

At this point, we need to join records from different resources. For this, we're going to use the refine hook useMany.

Before we start, just edit our interface for the new ICategory type:

interfaces/index.d.ts

export interface ICategory {
    id: number;
    title: string;
}

export interface IPost {
    id: number;
    title: string;
    status: "published" | "draft" | "rejected";
    category: { id: number };
    createdAt: string;
}

So we can update our list.tsx with the highlighted lines:

src/pages/posts/list.tsx

import { useMany } from "@pankod/refine-core";
import {
    List,
    TextField,
    TagField,
    DateField,
    Table,
    useTable,
} from "@pankod/refine-antd";

import { IPost, ICategory } from "interfaces";

export const PostList: React.FC = () => {
    const { tableProps } = useTable<IPost>();

    const categoryIds =
        tableProps?.dataSource?.map((item) => item.category.id) ?? [];
    const { data: categoriesData, isLoading } = useMany<ICategory>({
        resource: "categories",
        ids: categoryIds,
        queryOptions: {
            enabled: categoryIds.length > 0,
        },
    });

    return (
        <List>
            <Table {...tableProps} rowKey="id">
                <Table.Column dataIndex="title" title="title" />
                <Table.Column
                    dataIndex="status"
                    title="status"
                    render={(value) => <TagField value={value} />}
                />
                <Table.Column
                    dataIndex="createdAt"
                    title="createdAt"
                    render={(value) => <DateField format="LLL" value={value} />}
                />
                <Table.Column
                    dataIndex={["category", "id"]}
                    title="category"
                    render={(value) => {
                        if (isLoading) {
                            return <TextField value="Loading..." />;
                        }

                        return (
                            <TextField
                                value={
                                    categoriesData?.data.find(
                                        (item) => item.id === value,
                                    )?.title
                                }
                            />
                        );
                    }}
                />
            </Table>
        </List>
    );
};

We construct an array of categoryId's from /posts endpoint and pass it to the useMany hook. categoriesData will be filled with id-title tuples to be used for rendering our component.

Try the result on your browser and you'll notice that the category column is filled correctly with the matching category titles for the each record's category id's. Even the loading state is managed by refine.

tip

You can access nested properties of table data by using an array:

 dataIndex={["category", "id"]}

note

enabled: categoryIds.length > 0;

Here, we set a condition to start fetching only when data is available.

To get more detailed information about this hook, please refer the useMany Documentation.

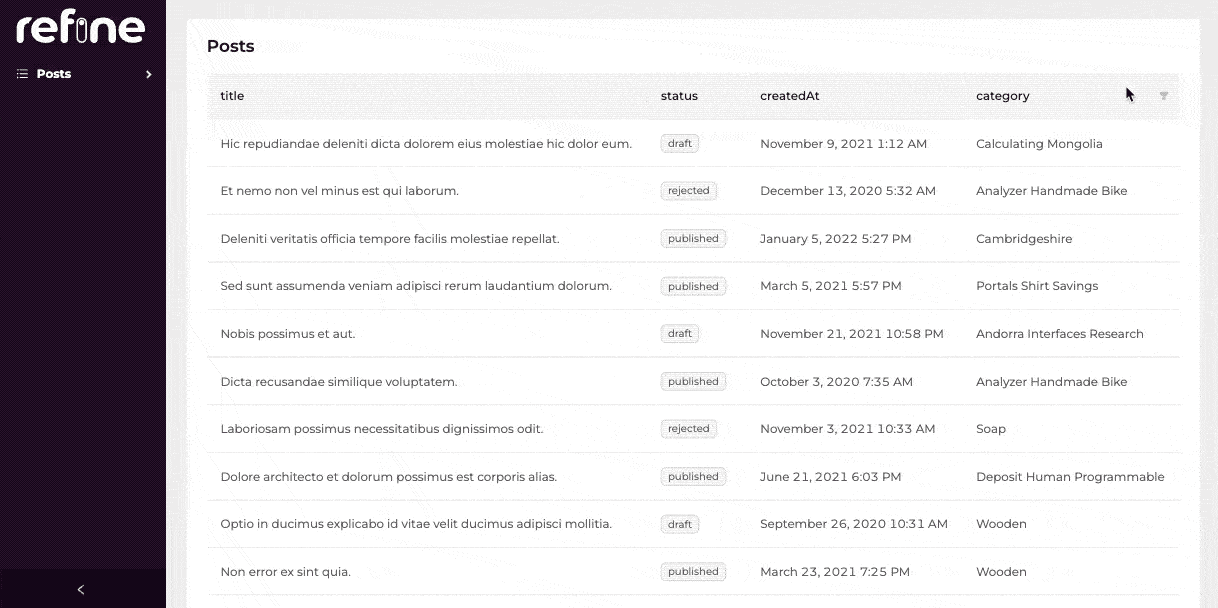

Adding search and filters

We're done with displaying post records on our <Table>. Let's add search and filtering capabilities to the component, so that the user can have more control over the data.

We are going to use <Table.Column>'s filterDropdown property and <FilterDropdown> component as following:

src/pages/posts/list.tsx

import { useMany } from "@pankod/refine-core";
import {
    List,
    TextField,
    TagField,
    DateField,
    Table,
    useTable,
    FilterDropdown,
    Select,
    useSelect,
} from "@pankod/refine-antd";

import { IPost, ICategory } from "interfaces";

export const PostList: React.FC = () => {
    const { tableProps } = useTable<IPost>();

    const categoryIds =
        tableProps?.dataSource?.map((item) => item.category.id) ?? [];
    const { data: categoriesData, isLoading } = useMany<ICategory>({
        resource: "categories",
        ids: categoryIds,
        queryOptions: {
            enabled: categoryIds.length > 0,
        },
    });
    const { selectProps: categorySelectProps } = useSelect<ICategory>({
        resource: "categories",
    });

    return (
        <List>
            <Table {...tableProps} rowKey="id">
                <Table.Column dataIndex="title" title="title" />
                <Table.Column
                    dataIndex="status"
                    title="status"
                    render={(value) => <TagField value={value} />}
                />
                <Table.Column
                    dataIndex="createdAt"
                    title="createdAt"
                    render={(value) => <DateField format="LLL" value={value} />}
                />
                <Table.Column
                    dataIndex={["category", "id"]}
                    title="category"
                    render={(value) => {
                        if (isLoading) {
                            return <TextField value="Loading..." />;
                        }

                        return (
                            <TextField
                                value={
                                    categoriesData?.data.find(
                                        (item) => item.id === value,
                                    )?.title
                                }
                            />
                        );
                    }}
                    filterDropdown={(props) => (
                        <FilterDropdown {...props}>
                            <Select
                                style={{ minWidth: 200 }}
                                mode="multiple"
                                placeholder="Select Category"
                                {...categorySelectProps}
                            />
                        </FilterDropdown>
                    )}
                />
            </Table>
        </List>
    );
};

✳️ <FilterDropdown> component serves as a bridge between its child input and refine's useTable hook. It passes child's input value to useTable using filterDropdown's embedded props and provides a filter button.

Refer to the <FilterDropdown> documentation for detailed usage. →

✳️ useSelect hook populates props for <Select> component from a given resource.

Refer to the Select documentation for detailed usage information. →

Refer to the useSelect documentation for detailed usage information. →

note

defaultValue is used to get the value for the current item. It's not affected by search, sort and filter parameters.

Showing a single record

At this point we are able to list all post records on the table component with pagination, sorting and filtering functionality. Next, we are going to add a details page to fetch and display data from a single record.

Let's create a <PostShow> component on /pages/posts folder:

src/pages/posts/show.tsx

import { useShow, useOne } from "@pankod/refine-core";
import { Show, Typography, Tag } from "@pankod/refine-antd";

import { IPost, ICategory } from "interfaces";

const { Title, Text } = Typography;

export const PostShow = () => {
    const { queryResult } = useShow();
    const { data, isLoading } = queryResult;
    const record = data?.data;

    const { data: categoryData } = useOne<ICategory>({
        resource: "categories",
        id: record?.category.id || "",
        queryOptions: {
            enabled: !!record?.category.id,
        },
    });

    return (
        <Show isLoading={isLoading}>
            <Title level={5}>Title</Title>
            <Text>{record?.title}</Text>

            <Title level={5}>Status</Title>
            <Text>
                <Tag>{record?.status}</Tag>
            </Text>

            <Title level={5}>Category</Title>
            <Text>{categoryData?.data.title}</Text>
        </Show>
    );
};

Now we can add the newly created component to our resource with show prop:

src/App.tsx

import { Refine } from "@pankod/refine-core";
import {
    Layout,
    ReadyPage,
    notificationProvider,
    ErrorComponent,
} from "@pankod/refine-antd";
import routerProvider from "@pankod/refine-react-router-v6";
import dataProvider from "@pankod/refine-simple-rest";

import "@pankod/refine-antd/dist/styles.min.css";

import { PostList, PostShow } from "./pages/posts";

export const App: React.FC = () => {
    return (
        <Refine
            routerProvider={routerProvider}
            dataProvider={dataProvider("https://api.fake-rest.refine.dev")}
            Layout={Layout}
            ReadyPage={ReadyPage}
            notificationProvider={notificationProvider}
            catchAll={<ErrorComponent />}
            resources={[
                {
                    name: "posts",
                    list: PostList,
                    show: PostShow,
                },
            ]}
        />
    );
};

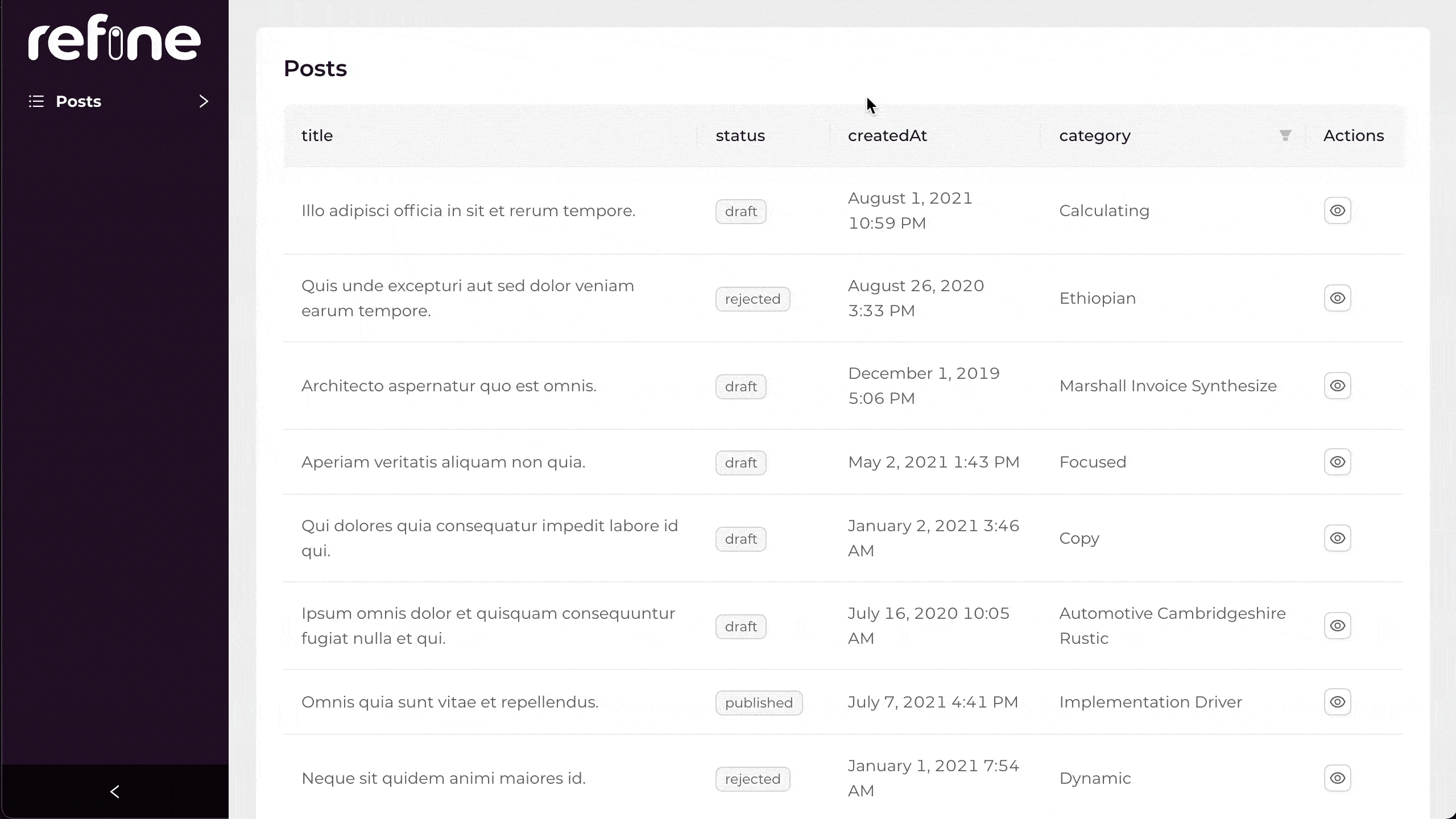

And then we can add a <ShowButton> on the list page to make it possible for users to navigate to detail pages:

src/pages/posts/list.tsx

import { useMany } from "@pankod/refine-core";
import {
    List,
    TextField,
    TagField,
    DateField,
    Table,
    useTable,
    FilterDropdown,
    Select,
    ShowButton,
    useSelect,
} from "@pankod/refine-antd";

import { IPost, ICategory } from "interfaces";

export const PostList: React.FC = () => {
    const { tableProps } = useTable<IPost>();

    const categoryIds =
        tableProps?.dataSource?.map((item) => item.category.id) ?? [];
    const { data: categoriesData, isLoading } = useMany<ICategory>({
        resource: "categories",
        ids: categoryIds,
        queryOptions: {
            enabled: categoryIds.length > 0,
        },
    });

    const { selectProps: categorySelectProps } = useSelect<ICategory>({
        resource: "categories",
    });

    return (
        <List>
            <Table {...tableProps} rowKey="id">
                <Table.Column dataIndex="title" title="title" />
                <Table.Column
                    dataIndex="status"
                    title="status"
                    render={(value) => <TagField value={value} />}
                />
                <Table.Column
                    dataIndex="createdAt"
                    title="createdAt"
                    render={(value) => <DateField format="LLL" value={value} />}
                />
                <Table.Column
                    dataIndex={["category", "id"]}
                    title="category"
                    render={(value) => {
                        if (isLoading) {
                            return <TextField value="Loading..." />;
                        }

                        return (
                            <TextField
                                value={
                                    categoriesData?.data.find(
                                        (item) => item.id === value,
                                    )?.title
                                }
                            />
                        );
                    }}
                    filterDropdown={(props) => (
                        <FilterDropdown {...props}>
                            <Select
                                style={{ minWidth: 200 }}
                                mode="multiple"
                                placeholder="Select Category"
                                {...categorySelectProps}
                            />
                        </FilterDropdown>
                    )}
                />
                <Table.Column<IPost>
                    title="Actions"
                    dataIndex="actions"
                    render={(_text, record): React.ReactNode => {
                        return (
                            <ShowButton
                                size="small"
                                recordItemId={record.id}
                                hideText
                            />
                        );
                    }}
                />
            </Table>
        </List>
    );
};

✳️ useShow() is a refine hook used to fetch a single record of data. The queryResult has the response and also isLoading state.

Refer to the useShow documentation for detailed usage information. →

✳️ To retrieve the category title, we need to make a call to /categories endpoint. This time we used useOne() hook to get a single record from another resource.

Refer to the useOne documentation for detailed usage information. →

attention

useShow() is the preferred hook for fetching data from the current resource. To query foreign resources you may use the low-level useOne() hook.

Since we've got access to raw data returning from useShow(), there is no restriction on how it's displayed on your components. If you prefer presenting your content with a nicer wrapper, refine provides you the <Show> component which has extra features like list and refresh buttons.

Refer to the <Show> documentation for detailed usage information. →

Editing a record

Until this point, we were basically working with reading operations such as fetching and displaying data from resources. From now on, we are going to start creating and updating records by using refine.

Let's start by creating a new <PostEdit> page responsible for editing a single record:

src/pages/posts/edit.tsx

import {
    useForm,
    Form,
    Input,
    Select,
    Edit,
    useSelect,
} from "@pankod/refine-antd";
import { IPost } from "interfaces";

export const PostEdit: React.FC = () => {
    const { formProps, saveButtonProps, queryResult } = useForm<IPost>();

    const { selectProps: categorySelectProps } = useSelect<IPost>({
        resource: "categories",
        defaultValue: queryResult?.data?.data?.category.id,
    });

    return (
        <Edit saveButtonProps={saveButtonProps}>
            <Form {...formProps} layout="vertical">
                <Form.Item
                    label="Title"
                    name="title"
                    rules={[
                        {
                            required: true,
                        },
                    ]}
                >
                    <Input />
                </Form.Item>
                <Form.Item
                    label="Status"
                    name="status"
                    rules={[
                        {
                            required: true,
                        },
                    ]}
                >
                    <Select
                        options={[
                            {
                                label: "Published",
                                value: "published",
                            },
                            {
                                label: "Draft",
                                value: "draft",
                            },
                            {
                                label: "Rejected",
                                value: "rejected",
                            },
                        ]}
                    />
                </Form.Item>
                <Form.Item
                    label="Category"
                    name={["category", "id"]}
                    rules={[
                        {
                            required: true,
                        },
                    ]}
                >
                    <Select {...categorySelectProps} />
                </Form.Item>
            </Form>
        </Edit>
    );
};

Now we can add the newly created component to our resource with edit prop:

src/App.tsx

import { Refine } from "@pankod/refine-core";
import {
    Layout,
    ReadyPage,
    notificationProvider,
    ErrorComponent,
} from "@pankod/refine-antd";
import routerProvider from "@pankod/refine-react-router-v6";
import dataProvider from "@pankod/refine-simple-rest";

import "@pankod/refine-antd/dist/styles.min.css";

import { PostList, PostShow, PostEdit } from "./pages/posts";

export const App: React.FC = () => {
    return (
        <Refine
            routerProvider={routerProvider}
            dataProvider={dataProvider("https://api.fake-rest.refine.dev")}
            Layout={Layout}
            ReadyPage={ReadyPage}
            notificationProvider={notificationProvider}
            catchAll={<ErrorComponent />}
            resources={[
                {
                    name: "posts",
                    list: PostList,
                    show: PostShow,
                    edit: PostEdit,
                },
            ]}
        />
    );
};

We are going to need an edit button on each row to display the <PostEdit> component. refine doesn't automatically add one, so we have to update our <PostList> component to add a <EditButton> for each record:

src/pages/posts/list.tsx

import { useMany } from "@pankod/refine-core";
import {
    List,
    TextField,
    TagField,
    DateField,
    Table,
    useTable,
    FilterDropdown,
    Select,
    ShowButton,
    useSelect,
    Space,
    EditButton,
} from "@pankod/refine-antd";

import { IPost, ICategory } from "interfaces";

export const PostList: React.FC = () => {
    const { tableProps } = useTable<IPost>();

    const categoryIds =
        tableProps?.dataSource?.map((item) => item.category.id) ?? [];
    const { data: categoriesData, isLoading } = useMany<ICategory>({
        resource: "categories",
        ids: categoryIds,
        queryOptions: {
            enabled: categoryIds.length > 0,
        },
    });

    const { selectProps: categorySelectProps } = useSelect<ICategory>({
        resource: "categories",
    });

    return (
        <List>
            <Table {...tableProps} rowKey="id">
                <Table.Column dataIndex="title" title="title" />
                <Table.Column
                    dataIndex="status"
                    title="status"
                    render={(value) => <TagField value={value} />}
                />
                <Table.Column
                    dataIndex="createdAt"
                    title="createdAt"
                    render={(value) => <DateField format="LLL" value={value} />}
                />
                <Table.Column
                    dataIndex={["category", "id"]}
                    title="category"
                    render={(value) => {
                        if (isLoading) {
                            return <TextField value="Loading..." />;
                        }

                        return (
                            <TextField
                                value={
                                    categoriesData?.data.find(
                                        (item) => item.id === value,
                                    )?.title
                                }
                            />
                        );
                    }}
                    filterDropdown={(props) => (
                        <FilterDropdown {...props}>
                            <Select
                                style={{ minWidth: 200 }}
                                mode="multiple"
                                placeholder="Select Category"
                                {...categorySelectProps}
                            />
                        </FilterDropdown>
                    )}
                />
                <Table.Column<IPost>
                    title="Actions"
                    dataIndex="actions"
                    render={(_text, record): React.ReactNode => {
                        return (
                            <Space>
                                <ShowButton
                                    size="small"
                                    recordItemId={record.id}
                                    hideText
                                />
                                <EditButton
                                    size="small"
                                    recordItemId={record.id}
                                    hideText
                                />
                            </Space>
                        );
                    }}
                />
            </Table>
        </List>
    );
};

Refer to the <EditButton> documentation for detailed usage information. →

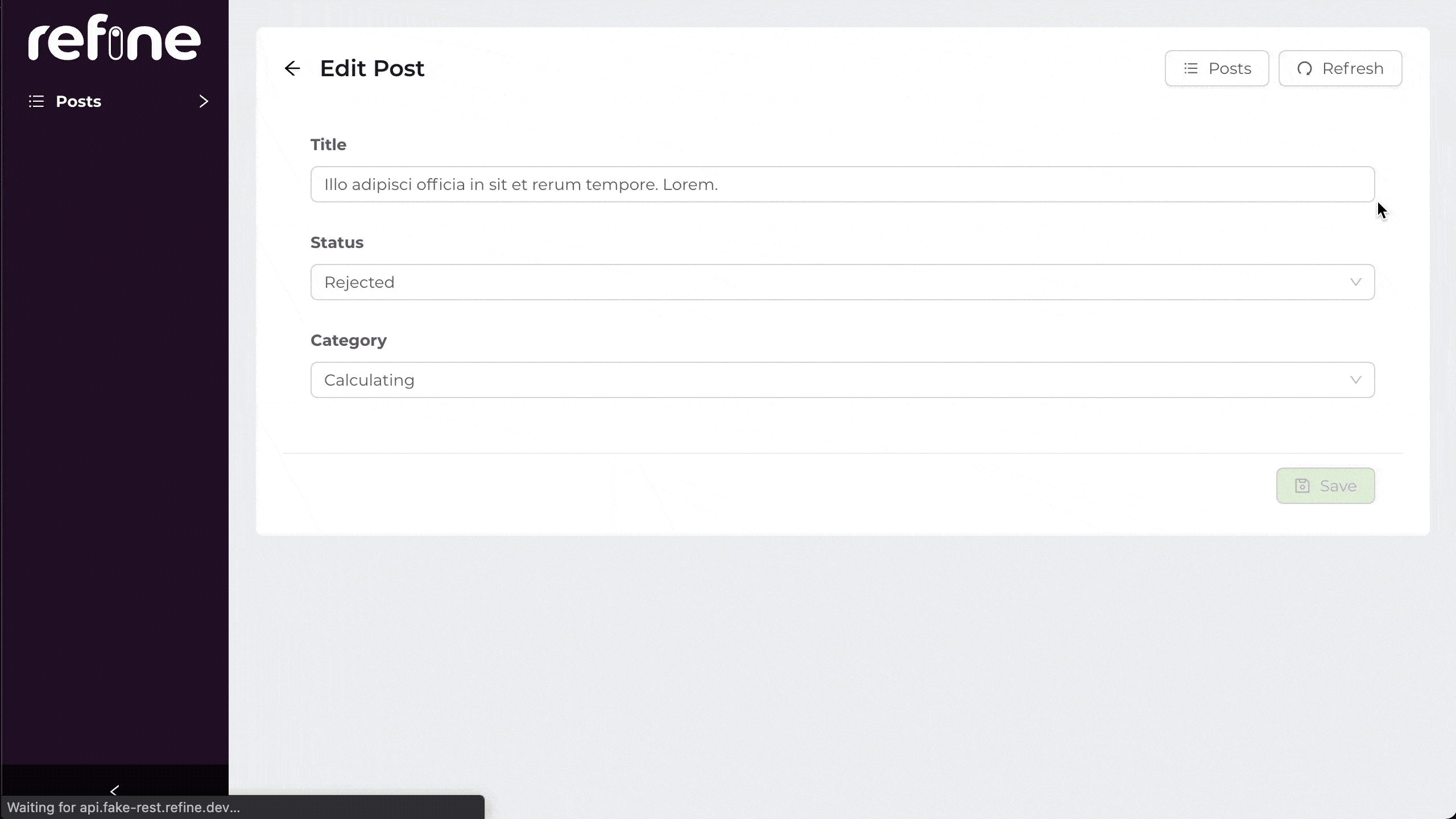

You can try using edit buttons which will trigger the edit forms for each record, allowing you to update the record data.

Let's see what's going on in our <PostEdit> component in detail:

✳️ useForm is a refine hook for handling form data. In the example, it returns formProps and saveButtonProps, where the former includes all necessary props to build the form and the latter has the ones for the save button.

Attention

In the edit page, useForm hook initializes the form with current record values.

Refer to the useForm documentation for detailed usage information . →

✳️ <Form> and <Form.Item> are Ant Design components to build form inputs.

✳️ <Edit> is a wrapper refine component for <Form>. It provides save, delete and refresh buttons that can be used for form actions.

✳️ Form data is set automatically, whenever children input <Form.Item>'s are edited.

✳️ Save button submits the form by executing the useUpdate method provided by the dataProvider. After a successful response, the application will be redirected to the listing page.

Creating a record

Creating a record in refine follows a similar flow as editing records.

First, we'll create a <PostCreate> page:

src/pages/posts/create.tsx

import {
    Create,
    Form,
    Input,
    Select,
    useForm,
    useSelect,
} from "@pankod/refine-antd";

import { IPost } from "interfaces";

export const PostCreate = () => {
    const { formProps, saveButtonProps } = useForm<IPost>();
    const { selectProps: categorySelectProps } = useSelect<IPost>({
        resource: "categories",
    });

    return (
        <Create saveButtonProps={saveButtonProps}>
            <Form {...formProps} layout="vertical">
                <Form.Item
                    label="Title"
                    name="title"
                    rules={[
                        {
                            required: true,
                        },
                    ]}
                >
                    <Input />
                </Form.Item>
                <Form.Item
                    label="Status"
                    name="status"
                    rules={[
                        {
                            required: true,
                        },
                    ]}
                >
                    <Select
                        options={[
                            {
                                label: "Published",
                                value: "published",
                            },
                            {
                                label: "Draft",
                                value: "draft",
                            },
                            {
                                label: "Rejected",
                                value: "rejected",
                            },
                        ]}
                    />
                </Form.Item>
                <Form.Item
                    label="Category"
                    name={["category", "id"]}
                    rules={[
                        {
                            required: true,
                        },
                    ]}
                >
                    <Select {...categorySelectProps} />
                </Form.Item>
            </Form>
        </Create>
    );
};

After creating the <PostCreate> component, add it to the resource with create prop:

src/App.tsx

import { Refine } from "@pankod/refine-core";
import {
    Layout,
    ReadyPage,
    notificationProvider,
    ErrorComponent,
} from "@pankod/refine-antd";
import dataProvider from "@pankod/refine-simple-rest";
import routerProvider from "@pankod/refine-react-router-v6";

import "@pankod/refine-antd/dist/styles.min.css";

import { PostList, PostShow, PostEdit, PostCreate } from "./pages/posts";

export const App: React.FC = () => {
    return (
        <Refine
            routerProvider={routerProvider}
            dataProvider={dataProvider("https://api.fake-rest.refine.dev")}
            Layout={Layout}
            ReadyPage={ReadyPage}
            notificationProvider={notificationProvider}
            catchAll={<ErrorComponent />}
            resources={[
                {
                    name: "posts",
                    list: PostList,
                    show: PostShow,
                    edit: PostEdit,
                    create: PostCreate,
                },
            ]}
        />
    );
};

And that's it! Try it on the browser and see if you can create new posts from scratch.

We should notice some minor differences from the edit example:

✳️ <Form> is wrapped with <Create> component.

✳️ Save button submits the form by executing the useCreate method provided by the dataProvider.

✳️ No defaultValue is passed to useSelect.

Deleting a record

Deleting a record can be done in two ways.

The first way is adding a delete button on each row since refine doesn't automatically add one, so we have to update our <PostList> component to add a <DeleteButton> for each record:

src/pages/posts/list.tsx

import { useMany } from "@pankod/refine-core";
import {
    List,
    TextField,
    TagField,
    DateField,
    Table,
    useTable,
    FilterDropdown,
    Select,
    ShowButton,
    useSelect,
    Space,
    EditButton,
    DeleteButton,
} from "@pankod/refine-antd";

import { IPost, ICategory } from "../../interfaces";

export const PostList: React.FC = () => {
    const { tableProps } = useTable<IPost>();

    const categoryIds =
        tableProps?.dataSource?.map((item) => item.category.id) ?? [];
    const { data: categoriesData, isLoading } = useMany<ICategory>({
        resource: "categories",
        ids: categoryIds,
        queryOptions: {
            enabled: categoryIds.length > 0,
        },
    });

    const { selectProps: categorySelectProps } = useSelect<ICategory>({
        resource: "categories",
    });

    return (
        <List>
            <Table {...tableProps} rowKey="id">
                <Table.Column dataIndex="title" title="title" />
                <Table.Column
                    dataIndex="status"
                    title="status"
                    render={(value) => <TagField value={value} />}
                />
                <Table.Column
                    dataIndex="createdAt"
                    title="createdAt"
                    render={(value) => <DateField format="LLL" value={value} />}
                />
                <Table.Column
                    dataIndex={["category", "id"]}
                    title="category"
                    render={(value) => {
                        if (isLoading) {
                            return <TextField value="Loading..." />;
                        }

                        return (
                            <TextField
                                value={
                                    categoriesData?.data.find(
                                        (item) => item.id === value,
                                    )?.title
                                }
                            />
                        );
                    }}
                    filterDropdown={(props) => (
                        <FilterDropdown {...props}>
                            <Select
                                style={{ minWidth: 200 }}
                                mode="multiple"
                                placeholder="Select Category"
                                {...categorySelectProps}
                            />
                        </FilterDropdown>
                    )}
                />
                <Table.Column<IPost>
                    title="Actions"
                    dataIndex="actions"
                    render={(_text, record): React.ReactNode => {
                        return (
                            <Space>
                                <ShowButton
                                    size="small"
                                    recordItemId={record.id}
                                    hideText
                                />
                                <EditButton
                                    size="small"
                                    recordItemId={record.id}
                                    hideText
                                />
                                <DeleteButton
                                    size="small"
                                    recordItemId={record.id}
                                    hideText
                                />
                            </Space>
                        );
                    }}
                />
            </Table>
        </List>
    );
};

Refer to the <DeleteButton> documentation for detailed usage information. →

Now you can try deleting records yourself. Just click on the delete button of the record you want to delete and confirm.

The second way is by showing delete button in <PostEdit> component. To show delete button in edit page, canDelete prop needs to be passed to resource object.

src/App.tsx

import { Refine } from "@pankod/refine-core";
import {
    Layout,
    ReadyPage,
    notificationProvider,
    ErrorComponent,
} from "@pankod/refine-antd";
import routerProvider from "@pankod/refine-react-router-v6";
import dataProvider from "@pankod/refine-simple-rest";

import "@pankod/refine-antd/dist/styles.min.css";

import { PostList, PostShow, PostEdit, PostCreate } from "./pages/posts";

export const App: React.FC = () => {
    return (
        <Refine
            routerProvider={routerProvider}
            dataProvider={dataProvider("https://api.fake-rest.refine.dev")}
            Layout={Layout}
            ReadyPage={ReadyPage}
            notificationProvider={notificationProvider}
            catchAll={<ErrorComponent />}
            resources={[
                {
                    name: "posts",
                    list: PostList,
                    show: PostShow,
                    edit: PostEdit,
                    create: PostCreate,
                    canDelete: true,
                },
            ]}
        />
    );
};

After adding canDelete prop, <DeleteButton> will appear in edit form.

Live StackBlitz Example

Our tutorial is complete. Below you'll find a Live StackBlitz Example displaying what we have done so far:

Next Steps

• Read about the authProvider to implement authentication for your refine application. →

• Read about the dataProvider to consume custom API's →

• Read about the i18nProvider to add language support. →

• Check the Guides & Concept section to learn generic solutions to common problems →

• Check example section for code snippets →
